nxpp::MaximumFlowResult< NodeID > Struct Template Reference

Result of a maximum-flow computation. More...

#include <flow.hpp>

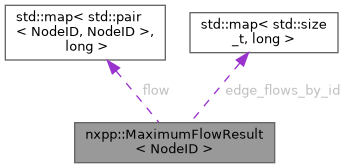

Collaboration diagram for nxpp::MaximumFlowResult< NodeID >:

Public Attributes
long	value = 0
std::map< std::pair< NodeID, NodeID >, long >	flow
std::map< std::size_t, long >	edge_flows_by_id

Detailed Description

template<typename NodeID>
struct nxpp::MaximumFlowResult< NodeID >

Result of a maximum-flow computation.

The value field stores the total flow. The flow member is the endpoint-keyed convenience view, while edge_flows_by_id keeps the precise flow assignment for each wrapper-tracked edge ID. In multigraphs, use edge_flows_by_id when one concrete parallel edge matters.

Example:

nxpp::DiGraph g;
g.add_edge("s", "a", 1.0, {{"capacity", 3L}});
g.add_edge("a", "t", 1.0, {{"capacity", 3L}});

auto result = g.maximum_flow("s", "t");
auto total = result.value;
auto endpoint_flow = result.flow.at({"s", "a"});

---

The documentation for this struct was generated from the following file:

• include/nxpp/flow.hpp
